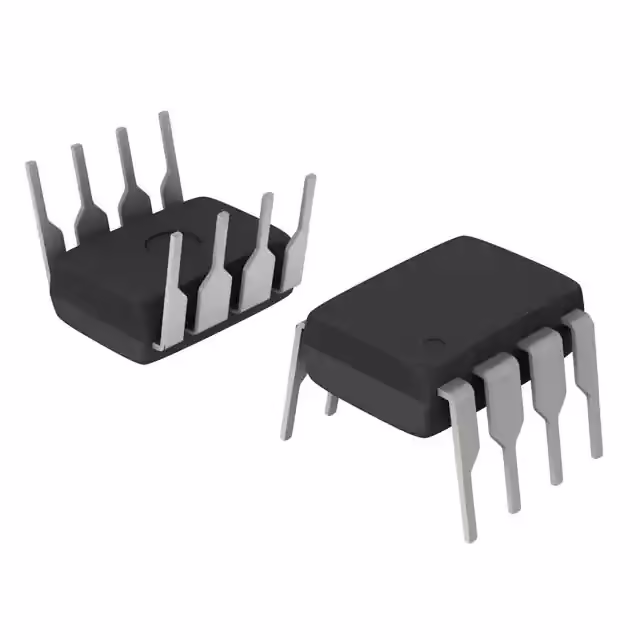

What is DS1302 Chip?

 The DS1302 is a real-time clock (RTC) integrated circuit from Maxim Integrated, commonly used in embedded systems to maintain accurate time and calendar information. This chip combines a timekeeper function with RAM for storing temporary data, making it versatile in applications such as data loggers, time-stamped systems, and battery-operated devices.

Key Features:

  1. Real-Time Clock (RTC): The DS1302 tracks time in seconds, minutes, hours, and also keeps date information such as the day, month, year, and day of the week. It automatically adjusts for months with less than 31 days and can account for leap years up to the year 2100.

  2. Low Power Consumption: Designed for low power consumption, the DS1302 operates from a battery backup source when the main power is lost, allowing it to maintain accurate timekeeping even when the system is powered down. This is particularly useful in battery-operated devices or systems with intermittent power availability.

  3. Trickle-Charge Circuit: The IC has a built-in trickle-charge capability, allowing a rechargeable battery to be charged while the system is powered. This ensures that the RTC can continue operating without external maintenance.

  4. Serial Interface: Communication with the DS1302 is achieved via a simple 3-wire SPI interface (CE, SCLK, I/O), which allows easy integration with microcontrollers like Arduino, Raspberry Pi, and others. The simple protocol makes it efficient to read and write data to and from the chip.

  5. 31 Bytes of SRAM: The DS1302 includes 31 bytes of static RAM that can be used for temporary data storage. This is particularly useful for applications that need a small amount of non-volatile memory for variables, counters, or settings.

Applications:

The DS1302 is used in a wide variety of embedded systems where timekeeping is essential. Some typical applications include:

  • Digital clocks and calendars
  • Data loggers that require timestamps for recorded events
  • Home automation systems that need to perform tasks at specific times
  • Security systems for time-stamped event logging
  • Battery-powered devices that need to maintain accurate time even when powered off

Technical Specifications:

  • Operating Voltage: 2V to 5.5V
  • Operating Temperature: -40°C to +85°C
  • Battery Backup: Supports CR2032 coin cell or other backup batteries
  • Interface: 3-wire serial communication (SPI)
  • Current Consumption: Typically under 1 µA in battery backup mode

The DS1302 is highly reliable and efficient for real-time clock applications, making it a common choice in embedded systems where accurate timekeeping and data retention are crucial.
