What is IR2101 Chip?

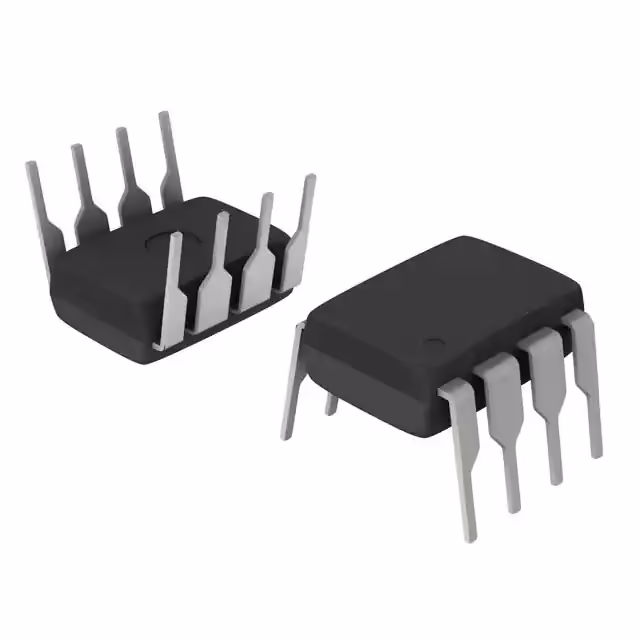

 The IR2101 is a high-voltage, high-speed half-bridge driver integrated circuit from International Rectifier (Infineon Technologies). It is designed to drive N-channel MOSFETs or IGBTs in half-bridge configurations, making it suitable for various applications in power electronics, including motor control, DC-DC converters, and power inverters.

Key Features:

  1. High Voltage Capability: The IR2101 can operate at voltages up to 600V, making it ideal for high-voltage applications, such as industrial drives and power supplies.

  2. Integrated High-Side and Low-Side Drivers: It features both high-side and low-side gate drivers in a single package, allowing for efficient control of both transistors in a half-bridge setup.

  3. Fast Switching Performance: The device is capable of fast rise and fall times, typically around 30 ns, enabling high-frequency operation and reducing switching losses, which improves overall system efficiency.

  4. Bootstrap Circuitry: The IR2101 includes a bootstrap circuit that enables the high-side driver to function correctly, allowing it to drive the high-side MOSFET above the supply voltage, essential for half-bridge configurations.

  5. Under-Voltage Lockout (UVLO): The IC has built-in under-voltage lockout protection for both the high-side and low-side drivers, preventing operation under insufficient supply voltage, which protects the transistors from damage.

Applications:

  • Motor Control: Widely used in driving brushless DC motors, stepper motors, and other electric motor applications where precise control is necessary.
  • DC-DC Converters: Employed in power conversion systems for efficient voltage regulation and conversion.
  • Power Inverters: Used in renewable energy systems and uninterruptible power supplies (UPS) for converting DC to AC power.
  • Audio Amplifiers: Commonly found in Class D audio amplifiers, where efficient switching is critical.

Technical Specifications:

  • Input Voltage Range: 10V to 20V
  • Output Current: Can drive gate currents up to 2A
  • Propagation Delay: Approximately 80 ns
  • Operating Temperature Range: -40°C to +125°C

The IR2101 is recognized for its reliability and performance in driving high-power MOSFETs and IGBTs, making it a popular choice in various high-efficiency power electronic applications. Its integration of critical features like under-voltage lockout and fast switching capabilities helps simplify designs while enhancing system performance.
