What is IR2153 Chip?

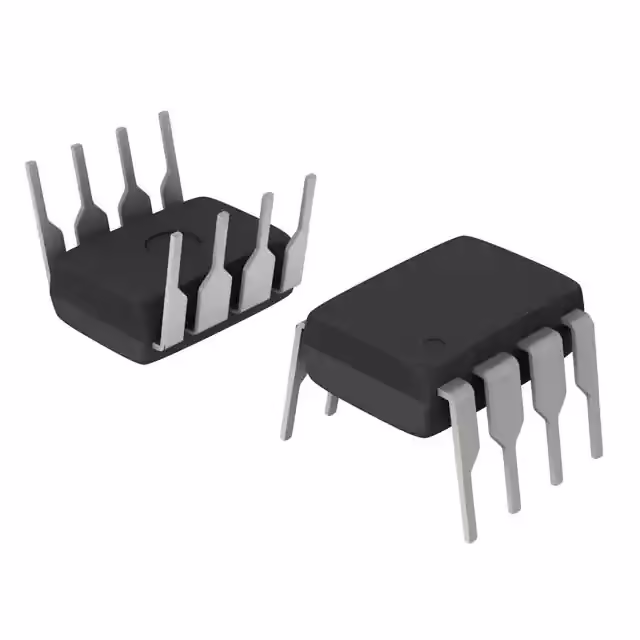

 The IR2153 is a self-oscillating half-bridge driver IC developed by International Rectifier (Infineon Technologies). It is primarily designed for use in switch-mode power supplies (SMPS), ballast circuits, and DC-AC inverters. This IC integrates several key features that simplify the design of high-frequency, high-efficiency power conversion systems while maintaining robust protection mechanisms.

Key Features

  1. Half-Bridge Driver: The IR2153 is built to drive a pair of MOSFETs in a half-bridge configuration, making it well-suited for power converters and inverters.
  2. Self-Oscillating Design: One of the key features of the IR2153 is its internal oscillator. This eliminates the need for an external clock or PWM signal, simplifying the circuit design. The oscillation frequency can be set externally with a resistor and capacitor, allowing flexibility in adapting to different applications.
  3. Dead Time Control: The IC includes built-in dead time between the switching of the high and low-side MOSFETs, preventing shoot-through currents and improving the overall efficiency of the system. The dead time is fixed at about 1.2 microseconds.
  4. Undervoltage Lockout (UVLO): To protect the MOSFETs and other components, the IR2153 includes an undervoltage lockout feature that disables switching when the supply voltage drops below a certain threshold. This ensures that the IC does not operate in unstable conditions.

Applications

  1. Switch-Mode Power Supplies (SMPS): In SMPS, the IR2153 is used for efficient conversion of electrical power through high-frequency switching. It helps reduce the size of components like transformers and filters, making it ideal for compact power supply designs.
  2. Ballast Circuits: The IC is widely used in electronic ballasts for fluorescent and HID lamps. Its self-oscillating feature and high-side/low-side driving capabilities make it suitable for controlling the voltage and current in lighting systems.
  3. DC-AC Inverters: The IR2153 can be used in low- to medium-power inverters, such as those found in solar inverters or uninterruptible power supplies (UPS), to generate AC output from a DC input.

Technical Specifications

  • Operating Voltage: 10V to 15.6V
  • Gate Drive Capability: 600V high-side driver with the ability to drive MOSFETs or IGBTs.
  • Operating Frequency: Adjustable up to 500 kHz, allowing it to be used in high-frequency applications.
  • Output Current: Sufficient to drive the gate of power MOSFETs for switching applications.

The IR2153 simplifies power control designs by integrating many essential features in one chip. Its ease of use, combined with reliability and flexibility, has made it a go-to solution in various industrial and consumer electronics applications.
