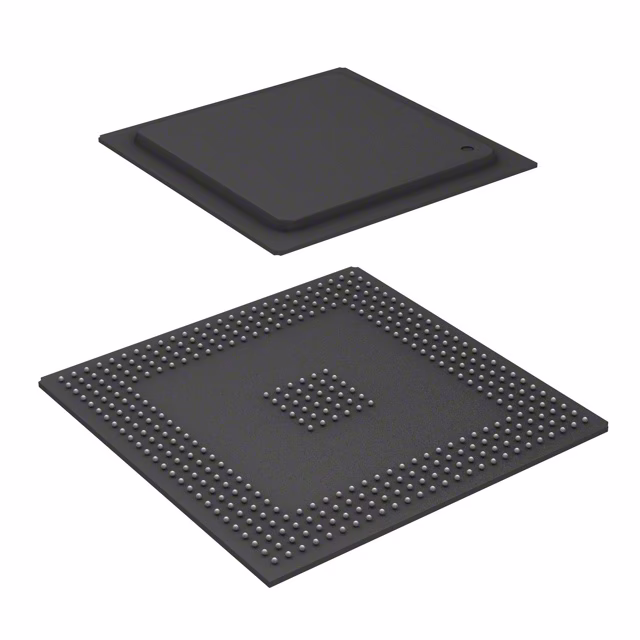

What is MPC561MZP56 Chip?

 The MPC561MZP56 is a 32-bit microcontroller based on the PowerPC architecture from NXP Semiconductors (formerly Freescale). It is part of the MPC500 series and is designed for high-performance, real-time applications, particularly in automotive and industrial systems where efficiency and reliability are critical.



Key Features:

  1. PowerPC Architecture: The MPC561 is built on the PowerPC architecture, offering robust processing power and efficient execution of complex algorithms. This architecture is well-suited for automotive and embedded systems that require high computational performance.

  2. High-Speed Processor: It operates at a clock speed of up to 56 MHz, providing fast processing capabilities for demanding real-time tasks.

  3. Memory Configuration: The microcontroller includes 512 KB of flash memory and 32 KB of SRAM, offering sufficient space for embedded applications, including firmware, data storage, and stack management.

  4. On-Chip Peripherals: It is equipped with a variety of integrated peripherals, such as timers, PWM outputs, analog-to-digital converters (ADC), and communication interfaces (SPI, CAN, I2C), which simplify system integration and reduce the need for external components.

  5. Real-Time Performance: The MPC561 is designed to meet the real-time requirements of embedded systems, providing precise control and fast response times, which are essential in applications like automotive control, robotics, and industrial automation.

  6. Low Power Consumption: It features low power modes, making it suitable for battery-operated and power-sensitive applications.

  7. Automotive Grade: The MPC561 is designed for automotive use, supporting AEC-Q100 qualification and robust operation under harsh environmental conditions, including wide temperature ranges.

Applications:

  • Automotive Control Systems: The MPC561 is commonly used in automotive applications such as engine control units (ECUs), transmission control, and body electronics due to its real-time processing capabilities and automotive-grade reliability.
  • Industrial Automation: It is suitable for industrial applications requiring precise control, such as robotics, motor control, and process automation.
  • Consumer Electronics: Often found in embedded systems within consumer electronics that demand high performance and real-time control, such as appliances and personal devices.
  • Embedded Systems: Used in various embedded systems requiring powerful processing in a low-power, cost-effective solution.

Technical Specifications:

  • CPU: PowerPC 56800E core.
  • Clock Speed: Up to 56 MHz.
  • Flash Memory: 512 KB.
  • SRAM: 32 KB.
  • Peripherals: CAN, SPI, I2C, UART, timers, ADC, and PWM.
  • Temperature Range: Typically -40°C to +125°C, suitable for automotive and industrial environments.
  • Package Type: Available in a LQFP-100 package, offering a balance of integration and pin count.

The MPC561MZP56 is highly regarded for its processing power, versatility, and automotive-grade durability, making it a great choice for embedded and automotive applications where high performance, real-time response, and reliability are essential.
