What is NE555P Chip?

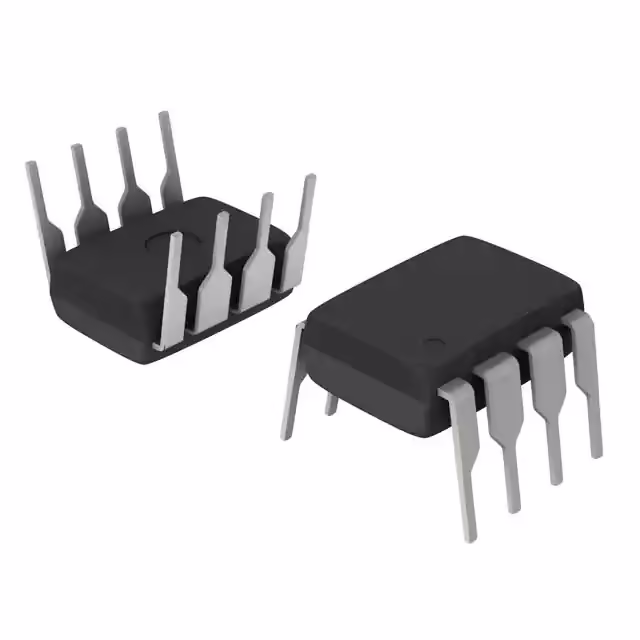

 The NE555P is a highly versatile timer IC that has been widely used in various applications since its introduction in 1972. Developed by Signetics (now part of NXP Semiconductors), the NE555P is known for its reliability, ease of use, and low cost. It can function in various modes, including astable, monostable, and bistable, making it suitable for a wide range of timer, delay, pulse generation, and oscillator applications.

Functionality and Features

The NE555P can operate in two primary configurations:

  • Astable Mode: In this configuration, the NE555P generates a continuous square wave output. The duty cycle and frequency of the output signal can be adjusted using two external resistors and a capacitor. This mode is often used in applications like clock pulses, tone generation, and light flashers.
  • Monostable Mode: Here, the NE555P functions as a one-shot timer. It produces a single pulse of a specified duration when triggered by an external event (such as a button press). The pulse width is determined by a resistor-capacitor (RC) network. This mode is commonly used for time delay applications, such as switching circuits, delays in light activation, or debouncing mechanical switches.
  • Bistable Mode: The NE555P can also act as a flip-flop, where it maintains a stable output state until triggered to change. This mode is used in applications such as toggle switches or memory circuits.

Technical Specifications

The NE555P operates over a wide voltage range, typically from 4.5V to 15V, and can handle output currents of up to 200mA. This allows it to directly drive small loads such as LEDs or low-power relays without the need for additional driver circuits. The IC has a frequency range of up to 500 kHz in astable mode, making it suitable for high-speed applications.

One of the significant advantages of the NE555P is its built-in comparators and flip-flop configuration, which simplifies the design process. It also features a discharge pin that allows for easy resetting of the timing capacitor in monostable mode.

Applications

The NE555P is commonly found in various applications, including:

  • Timer Circuits: Used in devices requiring time delays or periodic timing functions, such as appliances, alarms, and timers.
  • Pulse Width Modulation (PWM): Employed in motor control, LED dimming, and temperature control applications where varying the duty cycle is crucial.
  • Oscillators: Utilized in generating clock pulses for digital circuits or audio signals.
  • Tone Generation: Frequently used in sound-producing devices like sirens and alarms, where specific sound patterns are needed.

Conclusion

The NE555P timer IC has earned its place as one of the most popular and widely used ICs in electronics due to its versatility, ease of use, and low cost. Whether you're a hobbyist or a professional engineer, the NE555P offers a reliable solution for a variety of timing and control applications, making it an essential component in many electronic designs. Its robust performance and straightforward implementation continue to make it a go-to choice for numerous projects across different fields.
