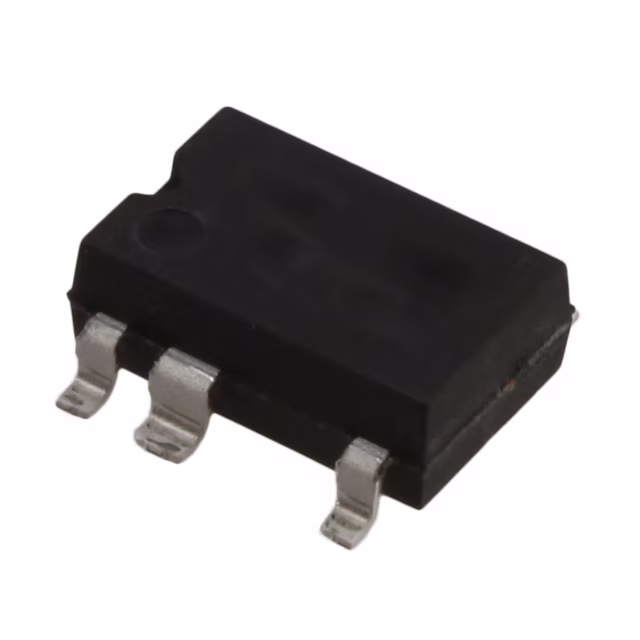

What is TNY264GN Chip?

 The TNY264GN is a compact, high-efficiency switching power supply IC from Power Integrations, part of the TinySwitch series. It is designed for low-power applications, offering a complete solution for power supply designs with minimal external components.

Key Features:

  1. Integrated Switching Regulator: The TNY264GN incorporates a high-voltage power MOSFET and control circuitry in a single package, which simplifies the design and reduces the number of external components required.

  2. Low Power Consumption: Designed for energy efficiency, it operates with low standby power, making it suitable for applications that require compliance with energy-saving regulations.

  3. Wide Input Voltage Range: The IC can operate over an input voltage range of 85V to 265V AC, making it suitable for universal input applications.

  4. Adjustable Output Voltage: The output voltage can be set using external resistors, allowing for flexibility in various applications.

  5. Built-in Protection Features: The TNY264GN includes several protection mechanisms such as over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown, ensuring safe operation in various conditions.

Applications:

  • Wall Adapters: Commonly used in power adapters for consumer electronics like chargers and small appliances.
  • LED Drivers: Suitable for driving LED lighting systems with efficient power conversion.
  • Standby Power Supplies: Ideal for applications requiring low-power standby modes, such as home appliances and set-top boxes.
  • Small Electronic Devices: Frequently found in compact electronic devices needing reliable power supply solutions.

Technical Specifications:

  • Output Power: Up to 12W in non-isolated applications, and higher in isolated designs.
  • Operating Temperature Range: -40°C to +150°C.
  • Package Type: Available in a surface-mount package, optimizing space for compact designs.

The TNY264GN is highly regarded for its simplicity, efficiency, and compactness, making it a popular choice among engineers and designers looking to implement reliable power supply solutions in low-power applications. Its integrated features reduce design complexity while ensuring robust performance across a wide range of operating conditions.
