What are gate drivers?​ BUY gate drivers

 Gate drivers play an extremely important role in modern power electronics systems. Today, MobikeChip takes an in-depth look at gate drivers to see what they are and how they play a key role in a variety of circuits.

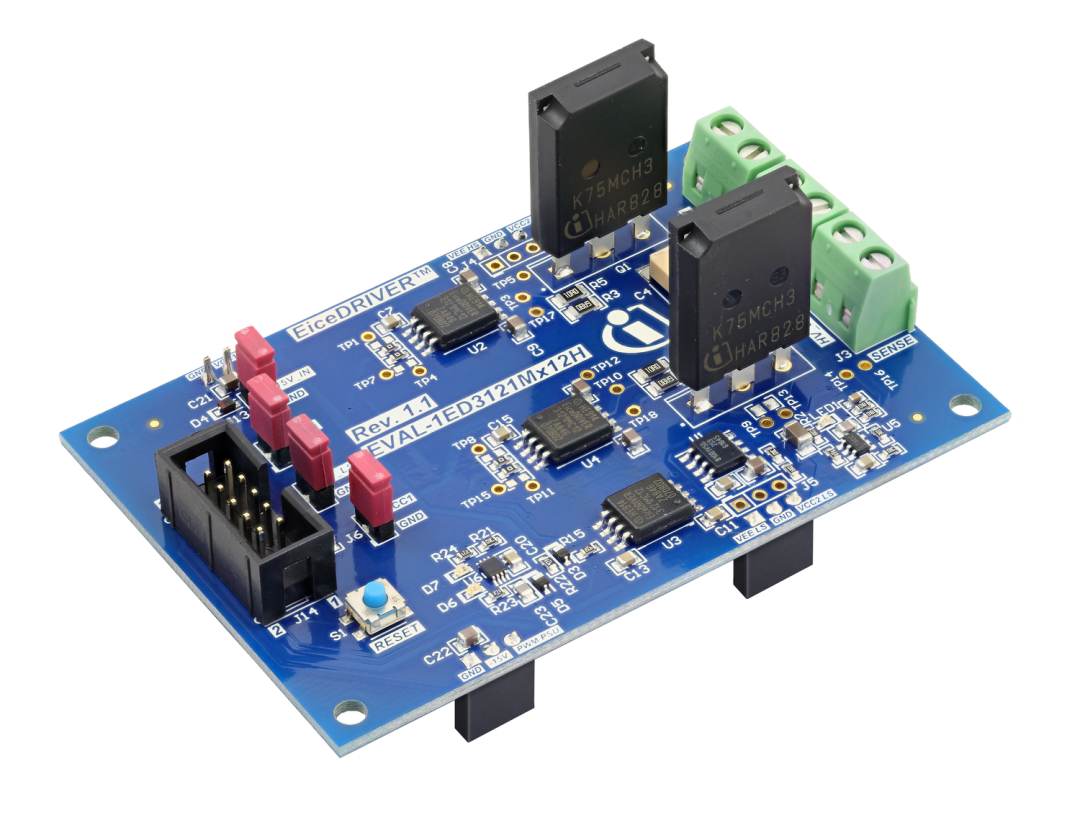

Definition of a Gate Driver

A Gate Driver is essentially a circuit whose primary function is to enhance the gate signal of a Field Effect Transistor (MOSFET) or Insulated Gate Bipolar Transistor (IGBT). As we know, MOSFET and IGBT semiconductor switches in the electronic system is responsible for controlling the current on and off, but their gate signal is often weak, directly from the controller output signal is difficult to drive them efficiently and stably. And the emergence of the gate driver, the perfect solution to this problem. It is like a signal “translator”, the controller output low voltage, low current signal, into high voltage, high current pulse, so as to accurately control the gate of MOSFET or IGBT, greatly improving the performance, reliability and service life of these devices.

How Gate Drivers Work

The gate driver process is based on some basic electrical principles. MOSFET, for example, MOSFET gate and source between the existence of parasitic capacitance, to make the MOSFET conductive, it is necessary to charge the gate capacitance, so that its gate voltage reaches a certain threshold; and to make it cut off, it is necessary to discharged the gate capacitance. Gate driver is responsible for completing the task of rapid charging and discharging.

In practice, the gate driver usually contains a DC/DC converter, an amplifier and an output circuit, etc. The DC/DC converter converts the input voltage into an output voltage suitable for the gate driver, typically between 15V and 30V. The amplifier is the heart of the gate driver, amplifying the low-power input signal from the controller and converting it into a high-voltage, high-current signal capable of driving the gate of the MOSFET or IGBT. The output circuit will further process the current output from the amplifier, and through the drive transformer and output capacitor and other components, the drive signal will be converted into a suitable voltage applied to the gate, quickly charging and discharging the gate capacitor, so as to realize the precise control of the on-state and off-state of the MOSFET or IGBT.

Types of Gate Drivers

Gate drivers are mainly categorized into two main types, non-isolated and isolated, based on different application scenarios and design requirements.

Non-isolated gate drivers are generally used in relatively simple circuits with low voltage levels. Among them, the low-side driver is more common, which is mainly used to drive the ground-referenced switch, that is, the low-side switch. For example, in some simple DC motor control circuits, the low-side driver can control the conduction and cutoff of the MOSFET to realize the initial regulation of the motor speed.

Isolated gate drivers are widely used in applications that require electrical isolation, such as in high power inverters, switching power supplies and other circuits. Take the common half-bridge and full-bridge circuits as an example, due to the existence of high-voltage and low-voltage parts of the circuit, in order to ensure the safe operation of the circuit as well as to prevent mutual interference between different potentials, it is necessary to use the isolated gate driver. It realizes the isolated transmission of signals by means of inductance, capacitance or optocoupler, making the control circuit and the power circuit electrically isolated from each other, which effectively improves the safety and stability of the system.

Application areas of gate driver

With its powerful functions, gate driver has a wide range of applications in many fields.

In the field of industrial control, motor control, inverter, power management and other systems are inseparable from the gate driver. Taking motor control as an example, by precisely controlling the switching frequency and on-time of MOSFET or IGBT through gate driver, it can realize the precise adjustment of motor speed and torque, which greatly improves the operation efficiency and control accuracy of motor.

In the field of automotive electronics, especially in electric vehicles and hybrid vehicles, gate drivers are used in key components such as battery management systems and motor controllers. In the battery management system, it can accurately control the power devices to ensure that the battery charging and discharging process is safe and efficient; in the motor controller, the gate driver helps the motor quickly respond to various driving commands to provide stable power output for the vehicle.

In addition, in the field of renewable energy, such as solar inverters, wind power generation systems, as well as the power management of communication equipment, gate drivers play an indispensable role, contributing to the improvement of the overall performance and stability of the system.

Through the introduction of MobikeChip, I believe you have a more comprehensive and in-depth understanding of gate drivers. Whether you are a beginner in electronic circuits or an experienced engineer, knowing about gate drivers can provide us with strong support in electronic design and system development. MobikeChip will bring more exciting electronic components knowledge sharing, please look forward to it!
