What is SN74LS00N Chip?

 The SN74LS00N is a quad 2-input NAND gate integrated circuit from the 74LS (Low Power Schottky) logic family. It is commonly used in digital logic circuits for performing basic logical operations, specifically the NAND operation, which is a fundamental building block in digital electronics.

Key Features:

  1. Quad 2-Input NAND Gates: The SN74LS00N contains four independent 2-input NAND gates, allowing it to perform logical NAND operations on two input signals. Each gate has two inputs and one output, making it versatile for building complex logic functions by combining multiple gates.

  2. Low Power Consumption: As part of the LS (Low Power Schottky) family, the SN74LS00N is designed to consume less power while maintaining high-speed performance, making it suitable for energy-sensitive applications.

  3. Fast Switching Speed: The device features fast switching times (typically around 25 ns at 5V), enabling it to operate at high speeds in digital systems.

  4. Wide Supply Voltage Range: The SN74LS00N operates within a supply voltage range of 4.75V to 5.25V, making it compatible with standard TTL logic systems.

  5. Standard TTL Input Levels: The input logic levels are compatible with standard TTL devices, which makes the SN74LS00N easy to integrate into various digital circuits.

Applications:

  • Digital Logic Circuits: Commonly used in combinational logic designs, such as counters, shift registers, and other logic circuits that require NAND operations.
  • Data Processing: Found in data processing systems where logic gates are used for decision-making and processing signals.
  • Control Systems: Used in control systems to process and manipulate digital signals based on the logical conditions.
  • Timing Circuits: Can be used in timing and clock pulse generation in digital systems.

Technical Specifications:

  • Supply Voltage: 4.75V to 5.25V.
  • Propagation Delay: Typical 25 ns at 5V.

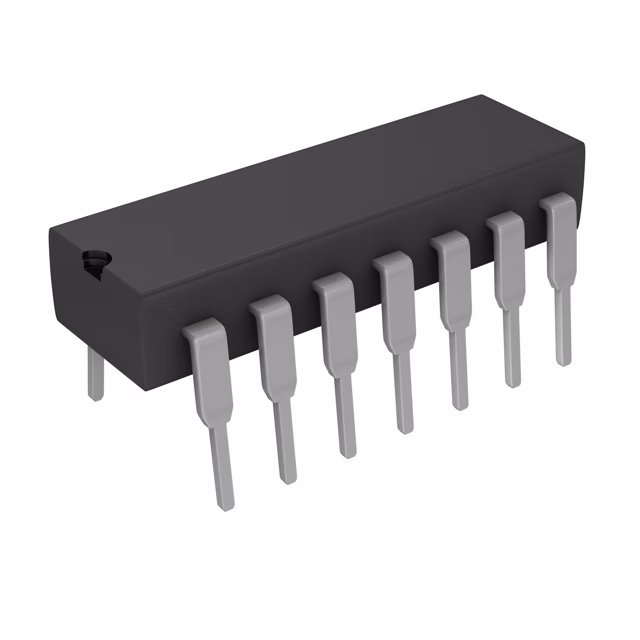

  • Package Type: Available in a 14-pin DIP package, making it easy to integrate into circuit boards.

The SN74LS00N is a reliable and efficient logic gate IC, widely used in digital systems for performing NAND operations in various applications. Its low power consumption, fast switching speed, and compatibility with standard TTL devices make it a popular choice for engineers and designers building digital circuits.
