What is ULN2003AN Chip?

 The ULN2003AN is a popular darlington transistor array IC from Texas Instruments designed for driving high-current loads, such as relays, motors, and LEDs, in various applications. It contains seven open-collector outputs, making it ideal for interfacing between low-voltage control signals and higher-voltage loads.

Key Features:

  1. Seven Darlington Pairs: The ULN2003AN consists of seven independent darlington pairs, allowing it to control multiple loads with a single chip, which simplifies circuit design.

  2. High Current and Voltage Ratings: Each output can handle up to 500 mA of continuous current and can withstand voltages up to 50V, making it suitable for driving various loads.

  3. Built-in Flyback Diodes: The IC includes internal flyback diodes for inductive load protection, which prevents voltage spikes when driving inductive devices like motors and relays.

  4. TTL Compatibility: The ULN2003AN is compatible with TTL logic levels, making it easy to interface with microcontrollers and digital logic circuits.

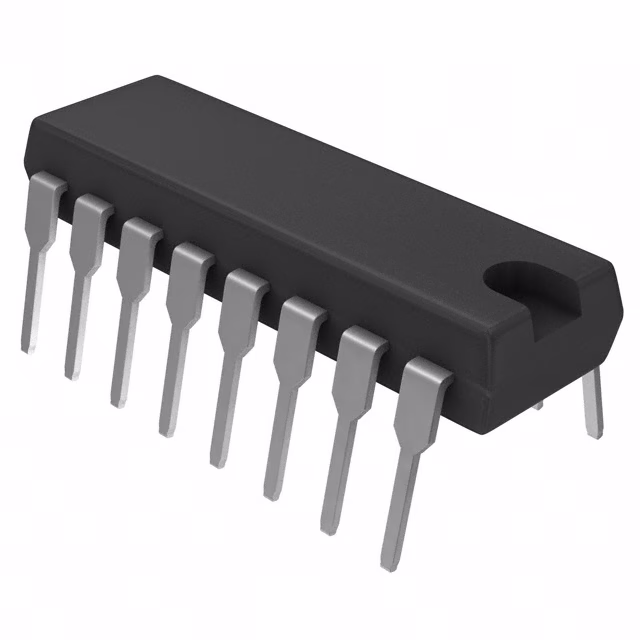

  5. Compact Package: Available in a 16-pin DIP or surface mount package, it offers a space-saving solution for circuit designs.

Applications:

  • Relay Drivers: Commonly used to drive relays in automation and control systems, allowing low-power control of high-power loads.
  • Motor Control: Suitable for controlling small DC motors and stepper motors in robotics and automation.
  • LED Drivers: Can be used in LED control applications where multiple outputs are needed.
  • Interface Circuits: Often employed in circuits that require interfacing between low-level control signals and high-current loads.

Technical Specifications:

  • Output Current: Up to 500 mA per channel
  • Operating Voltage: Up to 50V
  • Input Logic Levels: TTL compatible
  • Package: 16-pin DIP or surface mount options available.

The ULN2003AN is widely recognized for its versatility, reliability, and ease of use in driving high-current loads, making it a go-to choice for engineers and designers in a variety of electronic applications. Its integrated features enhance performance while simplifying circuit design, making it a valuable component in many projects.
